Description

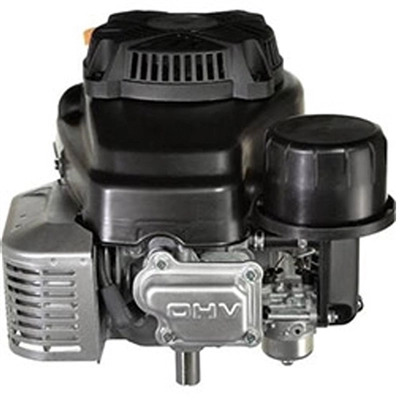

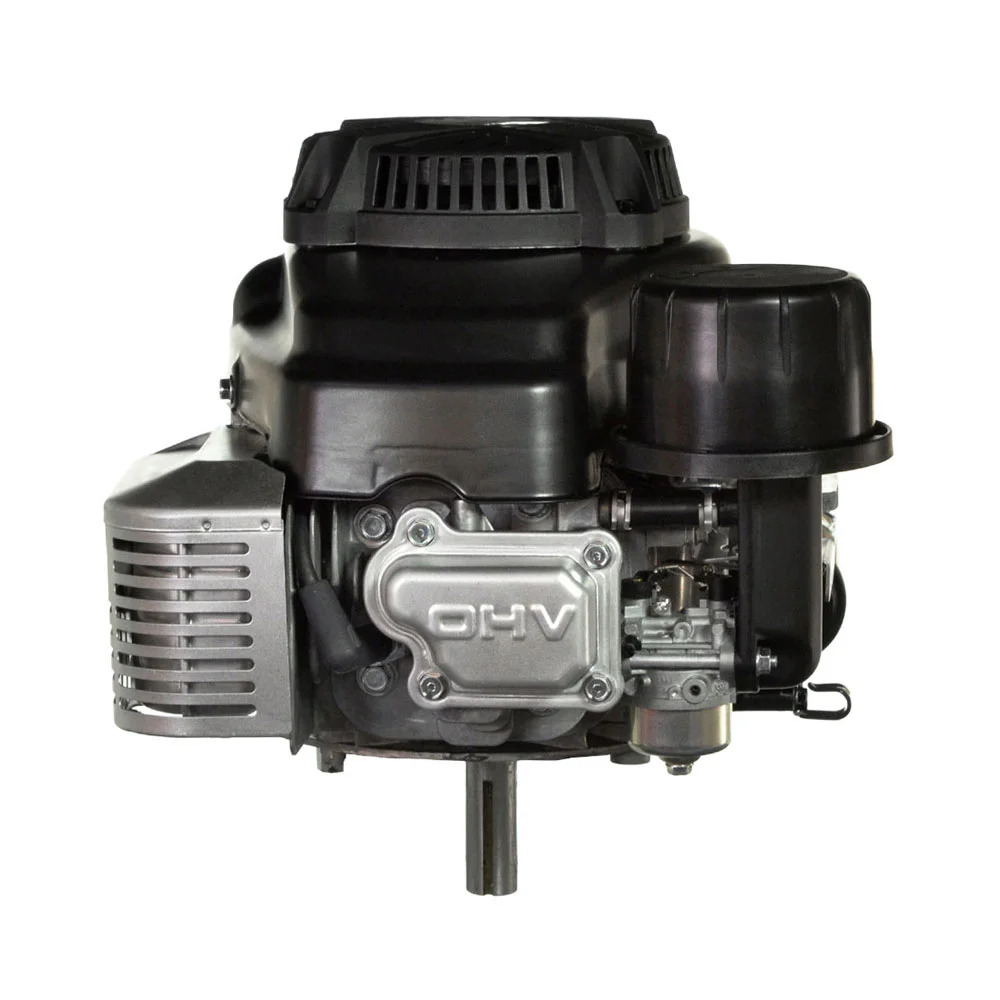

Kawasaki FJ180V M08-S vertical OHV 4-cycle single-cylinder engine is 179cc. This FJ180V KAI engine has a 25mm x 3-5/32″ (80mm) crankshaft, a recoil starter and low tone muffler with guard. A fuel tank is not included with this engine. With features like pressurized lubrication and ball bearing supported crankshafts, Kawasaki FJ Series engines deliver reliable power while keeping the operator comfortable. Buyer protection package provides a three-year engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Kawasaki FJ180V M08-S Vertical Engine FJ180V-BM08S Specifications
| BRAND | Kawasaki |
|---|---|
| MODEL NUMBER | FJ180V-M08-S |
| WARRANTY | 3 Year |
| SHIPPING WEIGHT | 30 |
| DISPLACEMENT | 179cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Vertical |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 25mm x 3-5/32″ |
| CRANKSHAFT DIAMETER | 25mm |
| CRANKSHAFT LENGTH | 3-5/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Liner |
| AIR CLEANER TYPE | Dual Element KAI |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 0.6 qt |
| LOW OIL ALERT | No |
| IGNITION SYSTEM | Electronic Spark |
| CARBURETOR TYPE | Internally Vented |
| BOLT CIRCLE | 8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | N/A |
